Rollable bellows
Constructed from an internal mechanism of springs and bearings, and using a belt for each specific requirement.

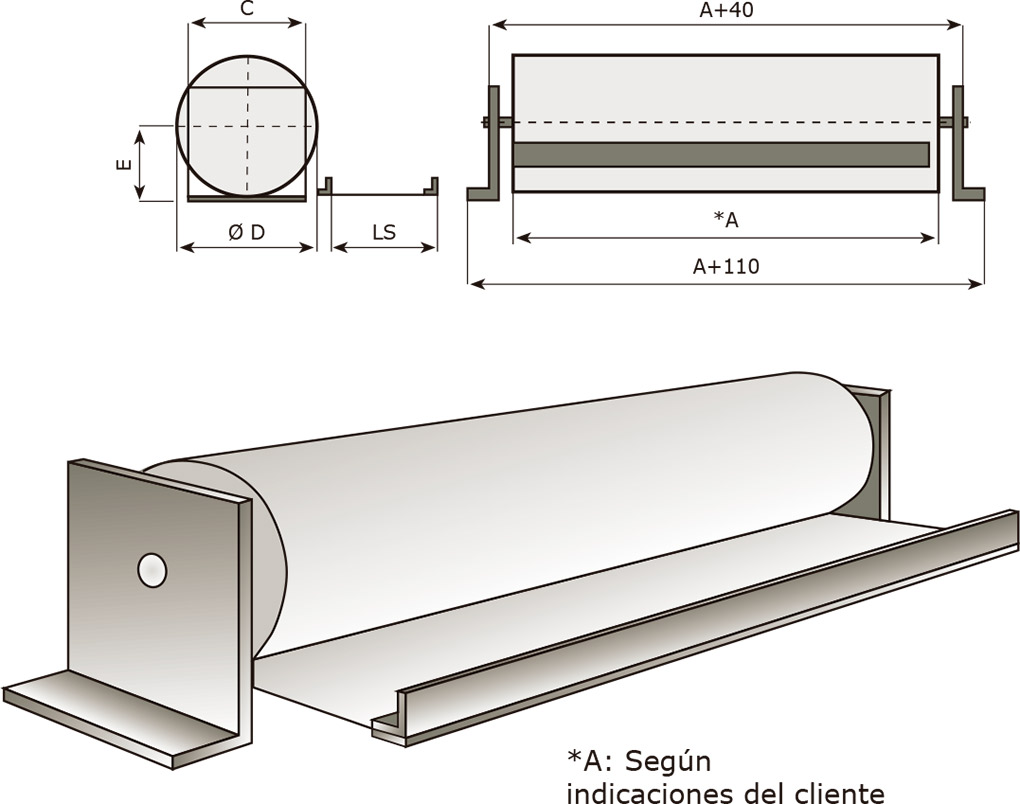

Reelers without casing
They are used for the protection of guides, spindles, or as safety elements for machines, lifting tables, etc.
The characteristics of these reelers are:
- Smaller space occupation with a greater usable stroke.
- Easy to assemble.
- Silent operation.
- High speeds.

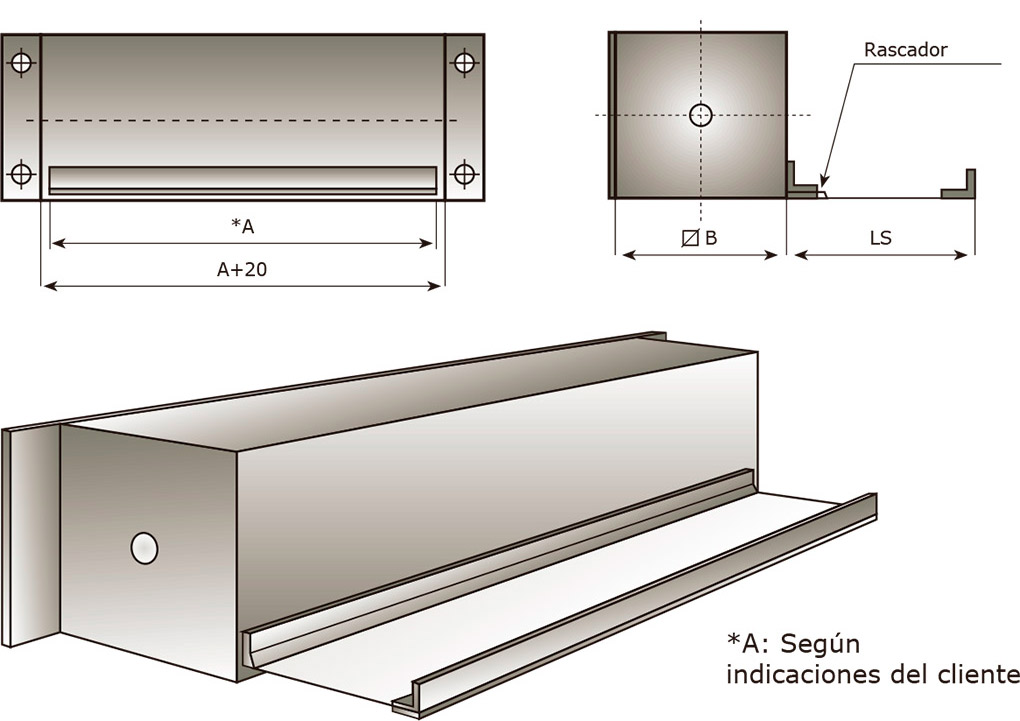

Reelers with casing
Types of belts
- Stainless steel belt:
In 0.25 mm thickness, maximum recommended width of 500 mm, resistant to 500ºC constant. - Textile belt in nylon + PVC:
In thicknesses of 0.5 - 0.8 - 1 and 1.9 mm for dust protection, resistant to 70ºC. -
Fiberglass belt with VITON:
In 0.5 mm thickness, resistant to 280ºC constant.
(Viton in black on one side; polyurethane in gray on the other side)
