Hinges

Our conveyor belts for transporting stamping scrap are specifically designed to fulfill their function.

These are robust machines designed to handle large volumes of scrap of all sizes.

They are motorized conveyors with articulated plates (hinges) for transporting the scrap. Every certain number of hinge steps, a dragging paddle is installed to prevent the scrap from returning on the upward section.

They are ideal for heavy-duty tasks.

Hinges Hinges Hinges Charnelas

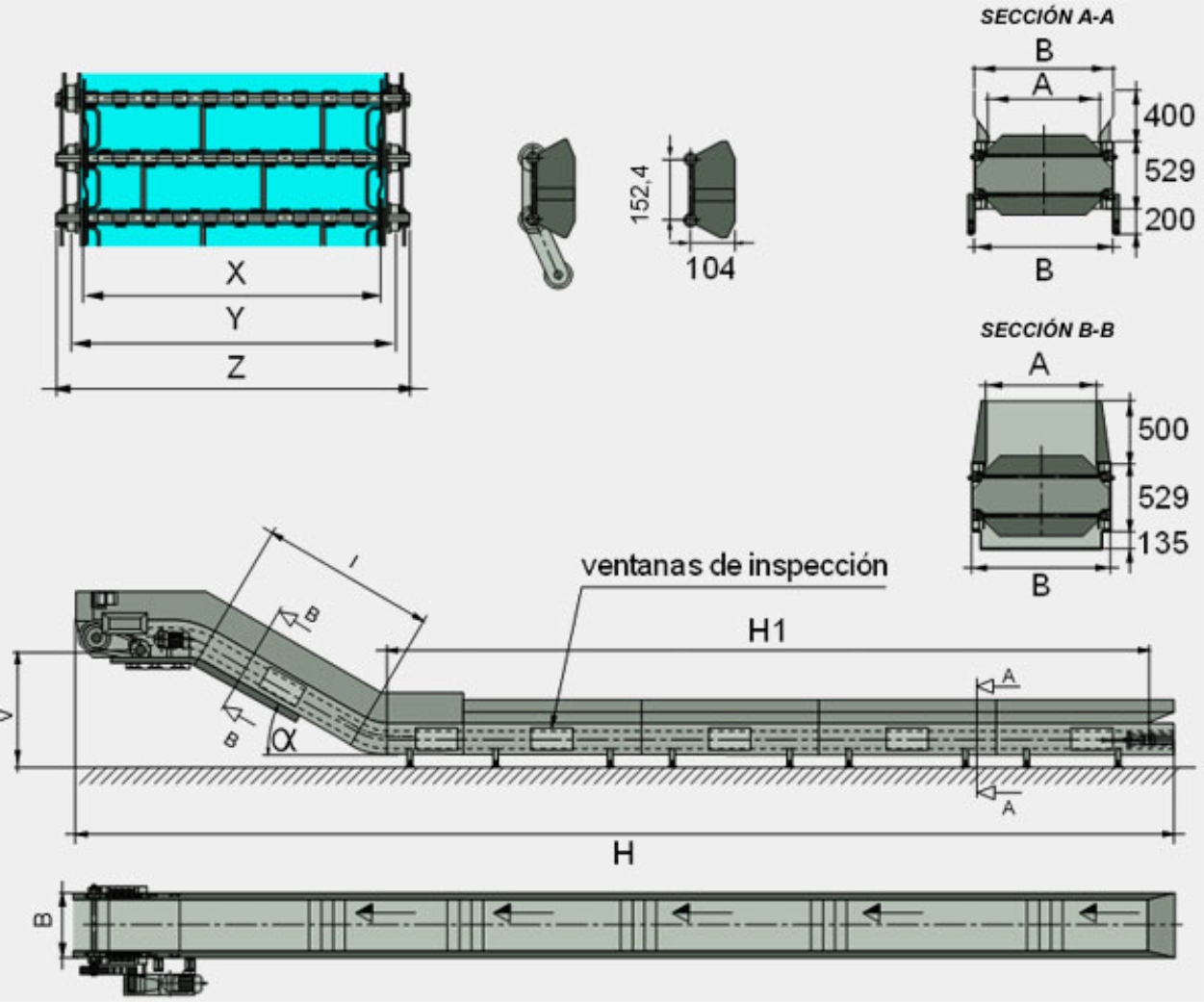

Conveyor 1 1/2” & 2 1/2”

11/2"
Conveyor

MOD. IR-1 IR-2 IR-3 IR-4 IR-5 IR-6 IR-7 IR-8 IR-9
A 82 182 282 382 482 582 682 782 882
B 192 292 392 492 592 692 792 882 992

Hinged belt

ANCHO IR-1 IR-2 IR-3 IR-4 IR-5 IR-6 IR-7 IR-8 IR-9
X 100 200 300 400 500 600 700 800 900
Y 126 226 326 426 526 626 729 826 926
Z 169 269 369 469 569 669 769 869 969

21/2"
Conveyor

MOD. IR-15 IR-20 IR-30 IR-45 IR-60 IR-75 IR-90 IR-105 IR-120 IR-135
A 125 177 277 427 577 727 877 1027 1177 1227
B 265 315 415 565 715 865 1015 1165 1315 1365

Hinged belt

ANCHO IR-100 IR-200 IR-300 IR-450 IR-600 IR-750 IR-900 IR-1050 IR-1200 IR-1350
X 150 200 300 450 600 750 900 1050 1200 1350
Y 180 230 330 480 630 780 930 1080 1230 1380
Z 227 277 377 527 677 827 977 1127 1277 1427

4”

4”

MOD. TC-150 TC-300 TC-450 TC-600 TC-750 TC-900 TC-1050 TC-1200
A 119 269 419 569 719 869 1019 1169
B 298 448 598 748 898 1048 1198 1348
X 150 300 450 600 750 900 1050 1200
Y 204 354 504 854 804 854 1104 1254
Z 267 417 567 717 867 1017 1167 1317

6”

6”

MOD. IR-150 IR-300 IR-450 IR-600 IR-750 IR-900 IR-1050 IR-1200 IR-1350 IR-1500
A 115 267 419 571 723 875 1027 1179 1331 1483
B 329 481 633 785 937 1089 1241 1393 1545 1697
X 152 304 456 608 760 912 1064 1216 1368 1520
Y 216,5 368,5 520,5 672,5 824,5 976,5 1228,5 1280,5 1432,5 1584,5
Z 290 442 594 746 898 1050 1202 1354 1506 1568

9”

9”

MOD. IR-150 IR-300 IR-450 IR-600 IR-750 IR-900 IR-1050 IR-1200 IR-1350 IR-1500
A 115 267 419 571 723 875 1027 1179 1331 1483
B 329 481 633 785 937 1089 1241 1393 1545 1697
X 152 304 456 608 760 912 1064 1216 1368 1520
Y 216,5 368,5 520,5 672,5 824,5 976,5 1228,5 1280,5 1432,5 1584,5
Z 290 442 594 746 898 1050 1202 1354 1506 1568
