Scraper conveyors
Motorized conveyor with scraping paddles. They are so named because the paddles scrape the bottom, displacing the accumulated sediment. Every certain number of hinge steps, a dragging paddle is installed. The number of paddles is determined based on the volume of chips to be transported.
It is used for short-sized chips, smaller than 50 mm.

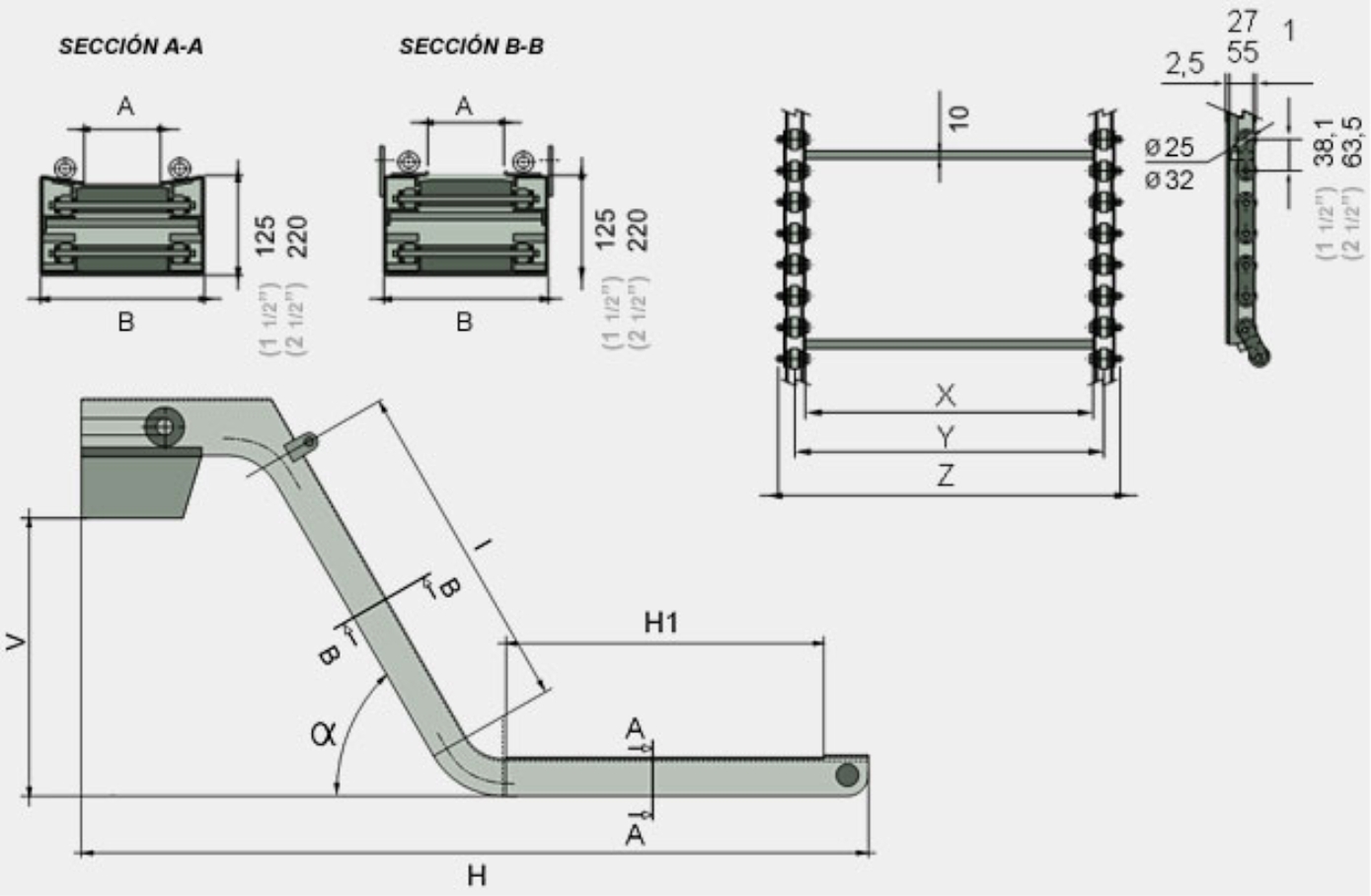

11/2"
Conveyor
| MOD. | IX-100R1 | IX-150R1 | IX-200R1 | IX-225R1 | IX-250R1 | IX-300R1 | IX-35 0R1 | IX-400R1 | IX-450R1 |
| A | 82 | 182 | 282 | 382 | 482 | 582 | 682 | 782 | 882 |
| B | 192 | 292 | 392 | 492 | 592 | 692 | 792 | 882 | 992 |
Scraper belt
| ANCHO. | 100 | 150 | 200 | 225 | 250 | 300 | 350 | 400 | 450 |
| X | 100 | 150 | 200 | 225 | 250 | 300 | 350 | 400 | 450 |
| Y | 126 | 176 | 226 | 251 | 276 | 326 | 376 | 426 | 476 |
| Z | 169 | 219 | 269 | 294 | 319 | 369 | 419 | 469 | 519 |
21/2"
Conveyor
| MOD. | IX-150R2 | IX-200R2 | IX-250R2 | IX-300R2 | IX-350R2 | IX-400R2 | IX-450R2 | IX-600R2 | IX-750R2 | IX-950R2 |
| A | 127 | 177 | 277 | 277 | 327 | 377 | 427 | 577 | 727 | 877 |
| B | 265 | 315 | 365 | 415 | 465 | 515 | 565 | 715 | 865 | 1015 |
Scraper belt
| ANCHO. | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 600 | 750 | 950 |
| X | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 600 | 750 | 950 |
| Y | 180 | 230 | 280 | 330 | 380 | 430 | 480 | 630 | 780 | 930 |
| Z | 230 | 280 | 330 | 380 | 430 | 480 | 530 | 680 | 830 | 980 |

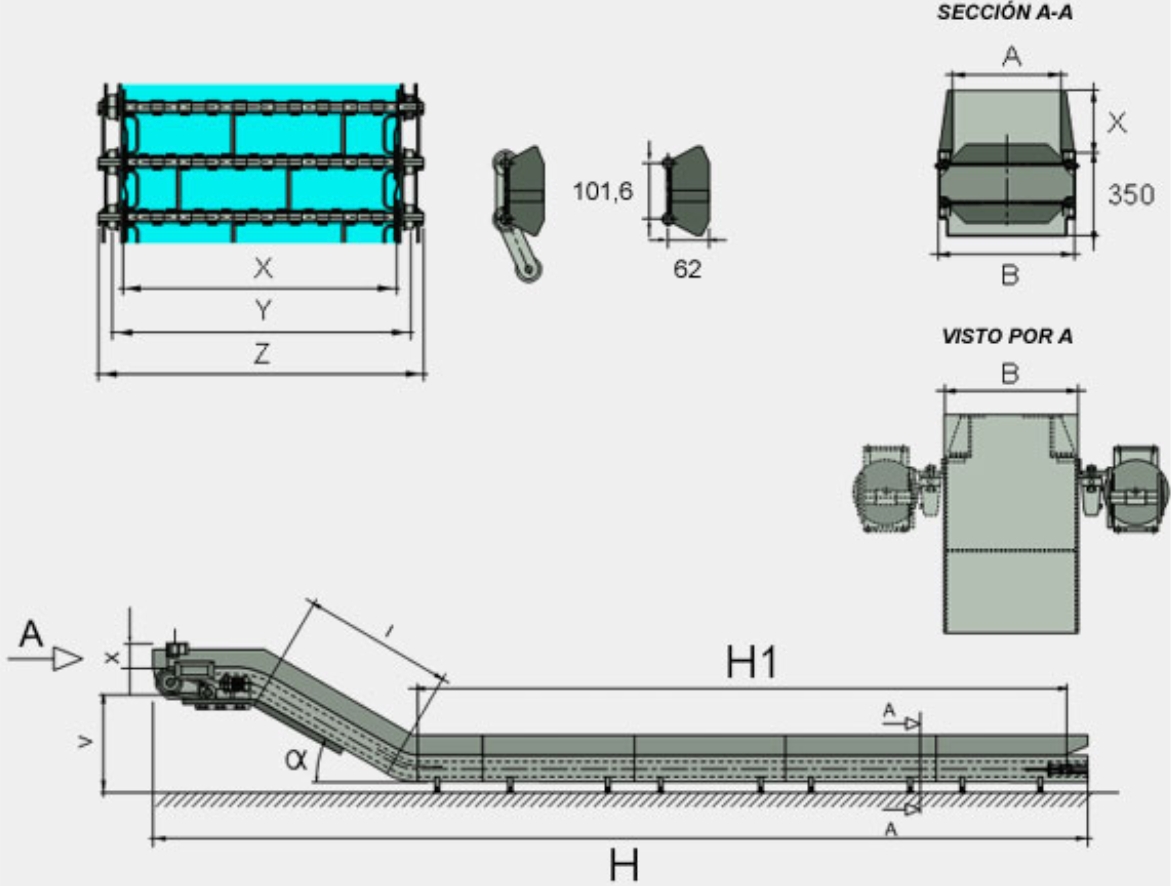

4”
| MOD. | TC-150 | TC-300 | TC-450 | TC-600 | TC-750 | TC-900 | TC-1050 | TC-1200 |
| A | 119 | 269 | 419 | 569 | 719 | 869 | 1019 | 1169 |
| B | 298 | 448 | 598 | 748 | 898 | 1048 | 1198 | 1348 |
| X | 150 | 300 | 450 | 600 | 750 | 900 | 1050 | 1200 |
| Y | 204 | 354 | 504 | 854 | 804 | 854 | 1104 | 1254 |
| Z | 267 | 417 | 567 | 717 | 867 | 1017 | 1167 | 1317 |
