Hinged conveyors

Motorized conveyor with articulated plates (hinges) for chip transport. Every certain number of hinge steps, a dragging paddle is installed to prevent the chips from returning on the upward section.

It is used for long, curly, and bulky chips.

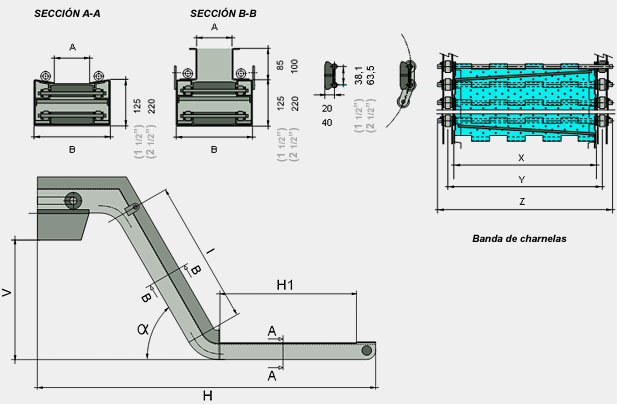

Sección A - Sección B

1^1/2"
Conveyor

MOD.	IR-1	IR-2	IR-3	IR-4	IR-5	IR-6	IR-7	IR-8	IR-9
A	82	182	282	382	482	582	682	782	882
B	192	292	392	492	592	692	792	882	992

Hinged belt

ANCHO	IR-1	IR-2	IR-3	IR-4	IR-5	IR-6	IR-7	IR-8	IR-9
X	100	200	300	400	500	600	700	800	900
Y	126	226	326	426	526	626	729	826	926
Z	169	269	369	469	569	669	769	869	969

2^1/2"
Conveyor

MOD.	IR-15	IR-20	IR-30	IR-45	IR-60	IR-75	IR-90	IR-105	IR-120	IR-135
A	125	177	277	427	577	727	877	1027	1177	1227
B	265	315	415	565	715	865	1015	1165	1315	1365

Hinged belt

ANCHO	IR-100	IR-200	IR-300	IR-450	IR-600	IR-750	IR-900	IR-1050	IR-1200	IR-1350
X	150	200	300	450	600	750	900	1050	1200	1350
Y	180	230	330	480	630	780	930	1080	1230	1380
Z	227	277	377	527	677	827	977	1127	1277	1427

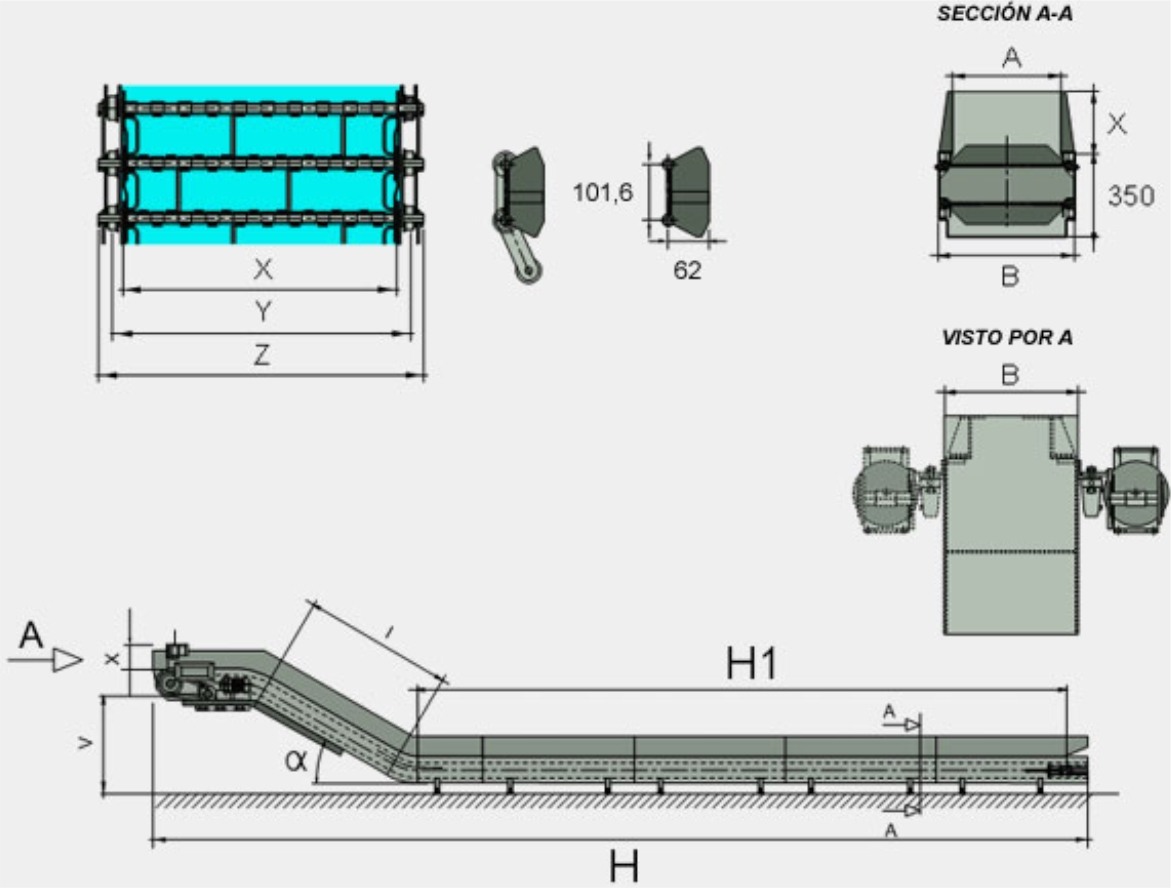

4^”

MOD.	TC-150	TC-300	TC-450	TC-600	TC-750	TC-900	TC-1050	TC-1200
A	119	269	419	569	719	869	1019	1169
B	298	448	598	748	898	1048	1198	1348
X	150	300	450	600	750	900	1050	1200
Y	204	354	504	854	804	854	1104	1254
Z	267	417	567	717	867	1017	1167	1317
